KEYBOARD STAND MANUFACTURER
Select by keyboard width, height range, load, folding format and single- or multi-tier setup requirements.
Request a Quote ↗
PRODUCTS
X-frame, Z-frame, platform and multi-tier keyboard supports for B2B instrument channels.
Single-X Keyboard Stand
View product ↗
Heavy-Duty Single-X Keyboard Stand
View product ↗
Two-Tier Single-X Keyboard Stand
View product ↗
Wheeled Z-Frame Keyboard Stand
View product ↗
Wheeled Two-Tier Z-Frame Keyboard Stand
View product ↗
Foldable Column Keyboard Stand
View product ↗
Adjustable Z-Frame Keyboard Stand
View product ↗
Two-Tier Z-Frame Keyboard Stand
View product ↗
Foldable Column Keyboard Stand
View product ↗BUYING GUIDE
Compare support format, height and width adjustment, arm dimensions and tier requirements against the actual instrument.
KS020 and KS032 are Single-X formats; KS033 is a two-tier Single-X format. KS040 and KS041 are Z-frame models, while KS042 and KS043 add a detachable second tier. KS1000B and KS1000W use a foldable aluminum column with two adjustable support tiers.
KS033 lists a 53–95 cm height range and 37–87 cm width range. KS040 lists 66–96.5 cm height and 59.5–86.5 cm width, with EVA-padded arms. Confirm the instrument’s underside, support contact points and dimensions for the intended playing position.
The listed maximum load is a model-level figure. It does not establish a separate safe capacity for each tier. Provide the weight and dimensions of both instruments and ask for the permitted distribution and operating instructions.
KS1000B and KS1000W list 110 cm overall column height and a 25–100 cm arm-position range. Column height is not the keyboard support height. KS041 and KS043 are wheeled formats; confirm mobility and installation requirements rather than assuming wheels suit every setup.
MODEL COMPARISON
Values come from the selected published product records. Missing information requires confirmation; figures are not interchangeable between models.
| Model / format | Height / arm position | Width / supports | Listed load / base / mobility |
|---|---|---|---|
| KS020Single-X Keyboard Stand | Height range: 30–95 cm | Width range: 32–95 cm; Arm length: 40 cm | Leg length: 50 cm |
| KS032Heavy-Duty Single-X Keyboard Stand | Height range: 53–95 cm | Width range: 37–87 cm; Arm length: 40 cm | Leg length: 45 cm; Maximum load: 90 kg |
| KS033Two-Tier Single-X Keyboard Stand | Height range: 53–95 cm | Width range: 37–87 cm; Primary arm length: 40 cm | Leg length: 45 cm; Maximum load: 90 kg |

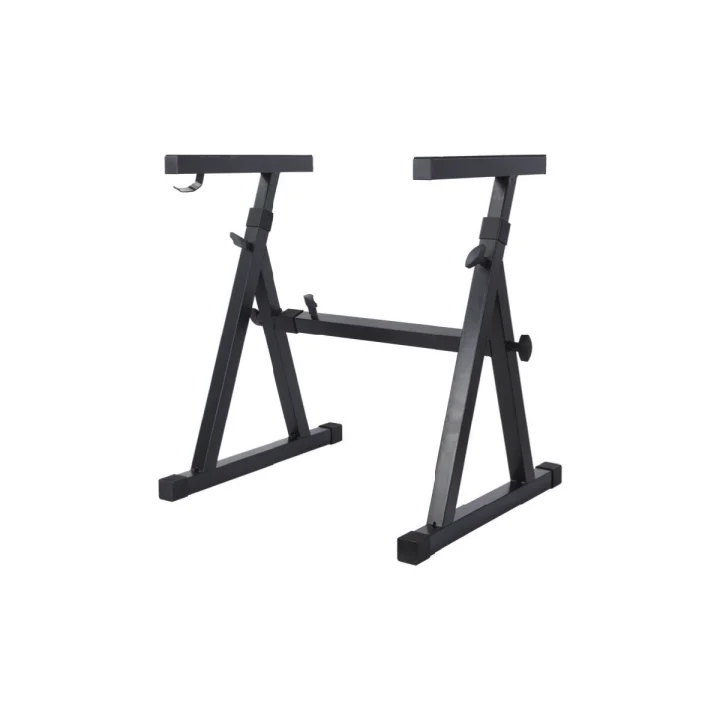

| KS040Adjustable Z-Frame Keyboard Stand | Height range: 66–96.5 cm | Width range: 59.5–86.5 cm; Arm length: 40.5 cm | Base depth: 55.5 cm; Maximum load: 150 kg |
| KS041Wheeled Z-Frame Keyboard Stand | Height range: 66–96.5 cm | Width range: 59.5–86.5 cm; Arm length: 40.5 cm | Base depth: 55.5 cm; Maximum load: 150 kg; Mobility: Wheels |

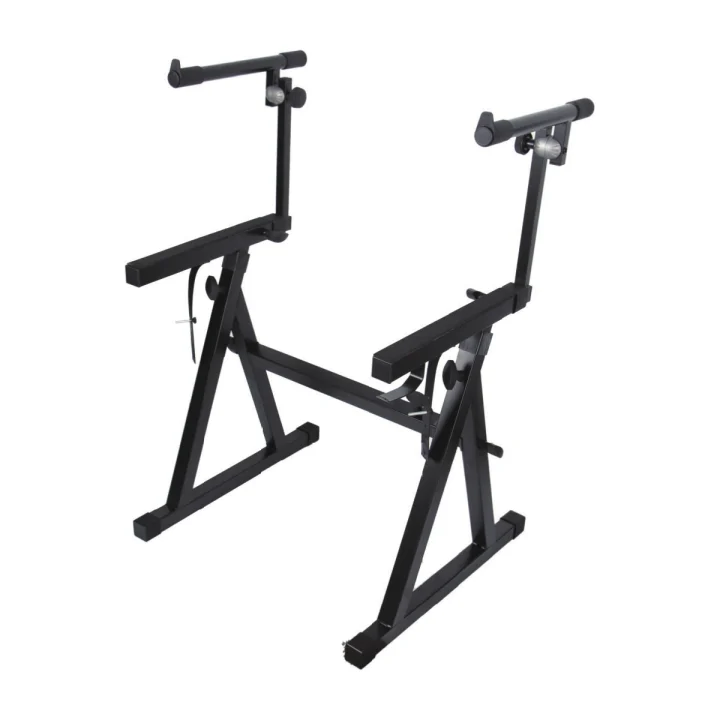

| KS042Two-Tier Z-Frame Keyboard Stand | Height range: 66–96.5 cm | Width range: 59.5–86.5 cm; Primary arm length: 40.5 cm; Upper-tier arm length: 35 cm; Upper-tier height: 27 cm; Upper-tier angle: 270 degrees | Base depth: 55.5 cm; Maximum load: 150 kg |
| KS043Wheeled Two-Tier Z-Frame Keyboard Stand | Height range: 66–96.5 cm | Width range: 59.5–86.5 cm; Primary arm length: 40.5 cm; Upper-tier arm length: 35 cm; Upper-tier height: 27 cm; Upper-tier angle: 270 degrees | Base depth: 55.5 cm; Maximum load: 150 kg |

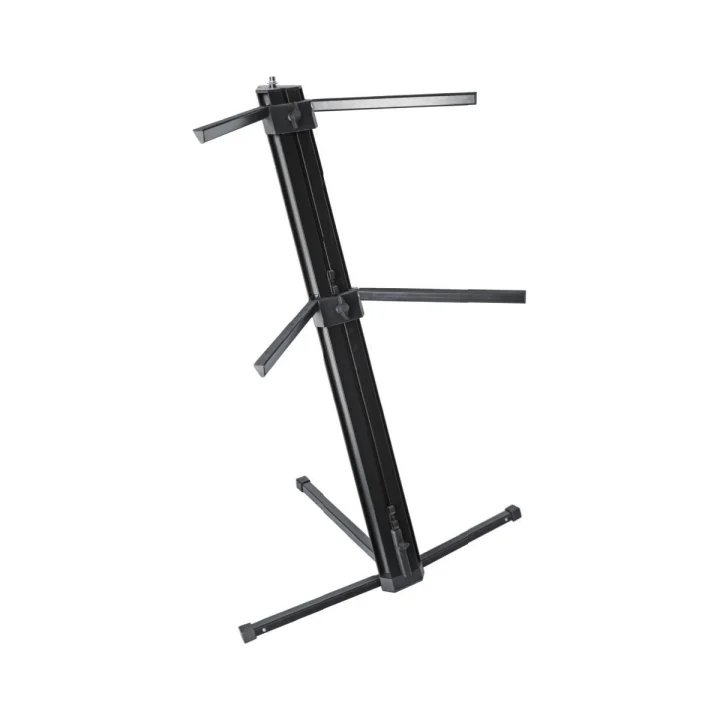

| KS1000BFoldable Column Keyboard Stand | Overall column height: 110 cm; Arm position range: 25–100 cm | Arm length: 40 cm | Body material: Aluminum |
| KS1000WFoldable Column Keyboard Stand | Overall column height: 110 cm; Arm position range: 25–100 cm | Arm length: 40 cm | Base width: 66 cm; Body material: Aluminum |
Open a model for full specifications and a product-specific inquiry. MOQ, samples, packaging and customization are subject to confirmation for the selected model and order.
Request a Quote ↗BUYER QUESTIONS
KS033 is a two-tier Single-X model. KS042 and KS043 have a detachable upper tier, while KS1000B and KS1000W have two adjustable column support tiers. Confirm the actual instrument arrangement before selecting a format.
No per-tier capacity is established by the current comparison. Ask for confirmation of the permitted load distribution for both instruments instead of applying the model-level maximum independently to each tier.
No. KS1000B and KS1000W list 110 cm overall column height separately from the 25–100 cm arm-position range. Compare the support position with your playing requirements.
Use the selected product’s Request a Quote link and provide quantities, instrument dimensions and weights, tier arrangement, working position and destination market. Ask about branding, packaging, samples and missing fit information; all commercial and customization terms require confirmation.
Explore other stand families: Microphone Stands · Speaker Stands · Music Stands · OEM / ODM inquiry process.
APPLICATIONS
B2B SOURCING
Musical-instrument distributors and stores can compare portable X frames, adjustable Z frames, platform stands and tier options.
OEM / ODM
Share the required stand format, instrument setup and packing needs so a suitable model can be identified.
