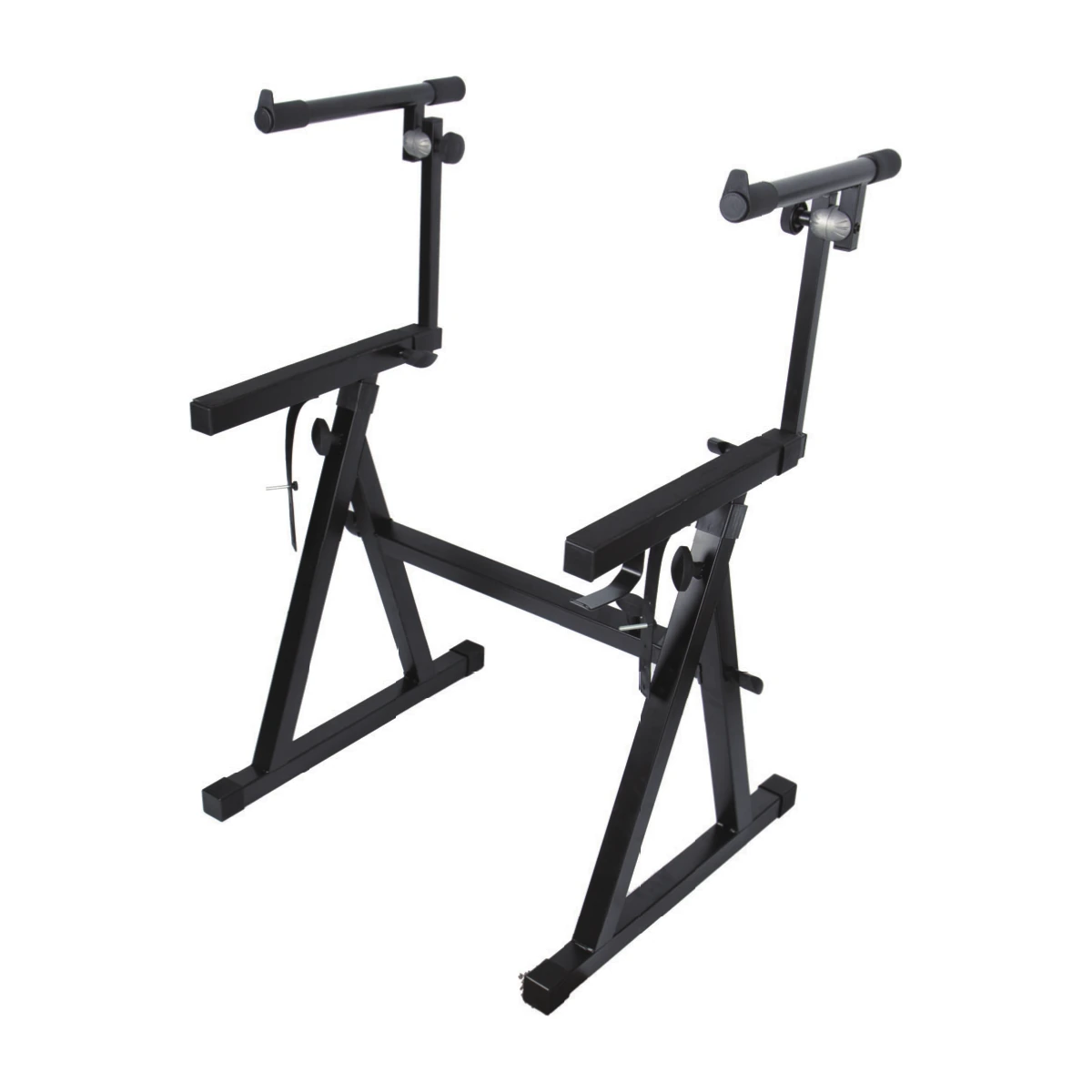

KS042 Two-Tier Z-Frame Keyboard Stand

An adjustable Z-frame keyboard stand with a detachable second tier, padded support arms and stability locks.

Detachable second tier
270-degree upper-tier adjustment
Adjustable height and width
EVA-padded support arms
Stability-lock mechanisms

SPECIFICATIONS

Product details.

KS042 is a two-tier Z-frame keyboard stand for stage, studio, classroom and rehearsal setups. Its main frame adjusts from 66–96.5 cm in height and 59.5–86.5 cm in width. The primary arms measure 40.5 cm, while the detachable upper tier uses 35 cm arms with 270-degree angle adjustment and a 27 cm tier height. EVA padding protects supported instruments, and stability locks secure the adjustable frame. The catalog lists a load capacity up to 150 kg for the Z-frame series.

Height range: 66–96.5 cm
Width range: 59.5–86.5 cm
Primary arm length: 40.5 cm
Upper-tier arm length: 35 cm
Upper-tier height: 27 cm
Upper-tier angle: 270 degrees
Base depth: 55.5 cm
Maximum load: 150 kg
